Laminate HPL

Continuous Flexible Roll HPL

Writable surface with magnetic properties for offices and educational spaces

Quick Specifications
Thickness Range: 2mm - 25mm
Standard Sizes: Multiple options
Fire Rating: Class B
Product Overview - Continuous Flexible Roll HPL

Product Overview

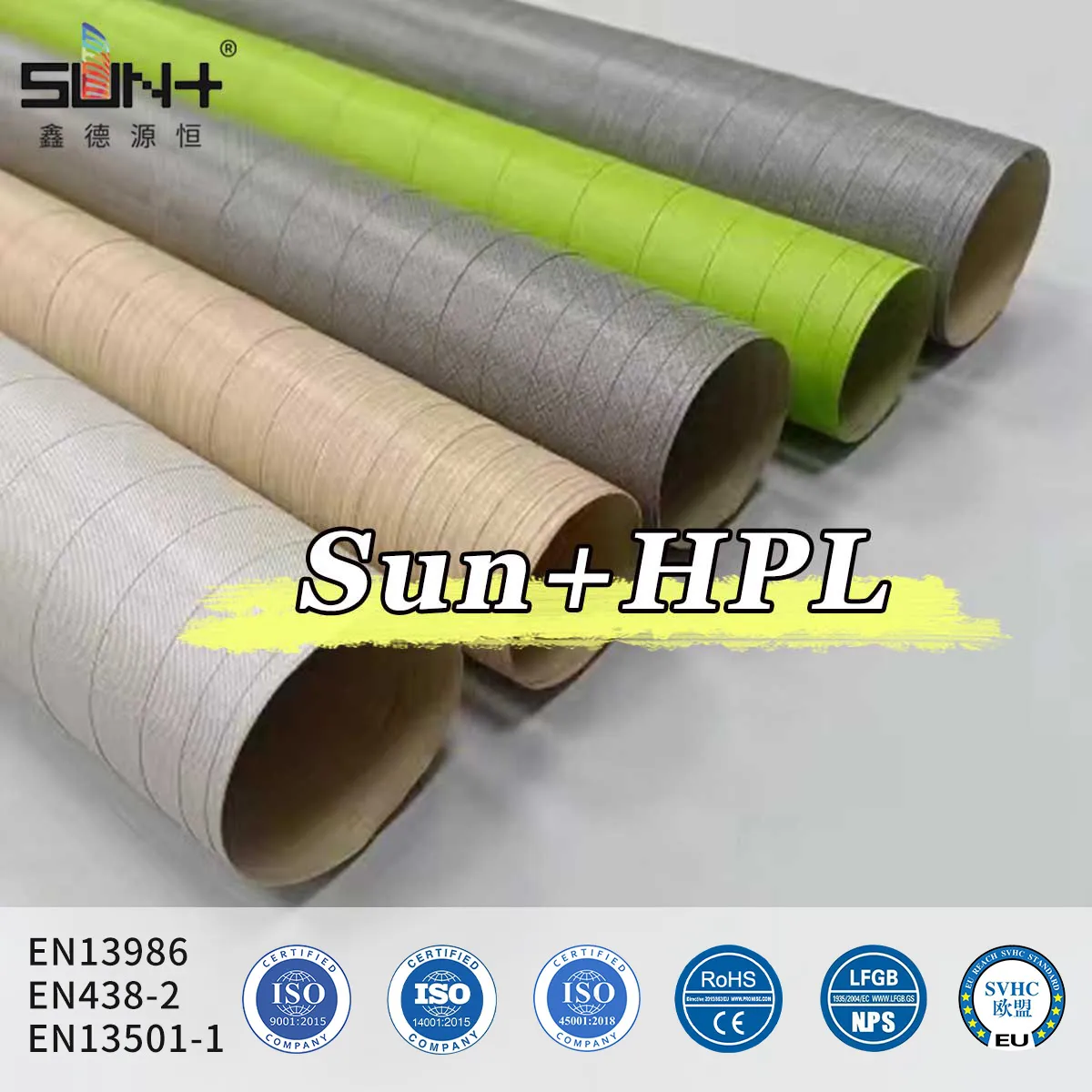

Continuous Flexible Roll HPL (连续柔性卷材HPL/CPL) is a specialized decorative laminate manufactured in continuous roll form using Continuous Pressure Lamination (CPL) technology, creating a flexible material ideal for wrapping curved surfaces, columns, and complex three-dimensional shapes. Unlike traditional High-Pressure Laminate (HPL) which is produced in rigid sheets, CPL is manufactured by continuously feeding decorative paper and kraft paper layers through heated pressure rollers that apply melamine and phenolic resins while simultaneously curing the material. This continuous process creates a thinner (0.4-0.7mm typical), more flexible laminate compared to standard HPL, while maintaining excellent surface durability and decorative appeal. The material is supplied in rolls (typically 1000-1400mm width, 100-200 meter length), enabling seamless application over large areas without visible joints. The flexibility allows the material to conform to curved surfaces including cylindrical columns, radiused walls, and complex architectural forms that would be impossible to clad with rigid sheet laminates. Available in extensive design options including wood grains, solid colors, stone patterns, and abstract textures matching standard HPL aesthetics. The material bonds to substrates using contact adhesive or hot-melt adhesive, with the flexibility allowing it to conform to substrate contours. Surface properties include good scratch resistance, stain resistance, and UV stability, though slightly lower than traditional HPL due to the thinner construction. Ideal for architectural column wrapping, curved reception desks, cylindrical displays, furniture with compound curves, door edge banding, and any application requiring laminate to conform to non-planar surfaces. Particularly valuable in commercial interiors, retail environments, and hospitality projects where curved design elements are prominent. The continuous roll format reduces waste compared to sheet goods and enables faster installation on large projects. Meets relevant standards for decorative surfaces including EN 15186 for continuous pressure laminates.

Technical Specifications - Continuous Flexible Roll HPL

Technical Specifications

Physical Properties

Thickness 0.4mm - 0.7mm
Roll Width 1000mm - 1400mm
Roll Length 100m - 200m
Flexibility Conforms to curves and compound shapes

Performance Characteristics

Scratch Resistance Good (AC2-AC3)
Stain Resistance Good
UV Stability Good
Bonding Method Contact adhesive or hot-melt

Quality Standards

CPL Standard EN 15186
Design Options 300+ patterns
Application Method Roll-on, seamless
Features - Continuous Flexible Roll HPL

Key Benefits

Flexible

Conforms to curves, 3D surfaces

Continuous Roll

Seamless application, no joints

Easy to Wrap

Complex shapes, columns, curves

Versatile

Doors, furniture, architectural elements

Cost Effective

Reduces material waste

Durable

Wear-resistant flexible surface

Professional Finish

Factory-quality results

Wide Rolls

Up to 1.3m width available

Applications - Continuous Flexible Roll HPL

Applications

Architectural Column Wrapping and Curved Walls

Medium Use

The primary application for flexible roll laminate is wrapping architectural columns in commercial buildings, hotels, retail stores, and public spaces. Traditional rigid laminates cannot conform to cylindrical column surfaces, requiring expensive custom metal cladding or labor-intensive segmented panel installation. Flexible roll HPL solves this problem by conforming seamlessly to round, oval, and complex column shapes. The continuous roll format enables wrapping entire column heights without horizontal seams, creating clean, monolithic appearance. Available in wood grain patterns for creating faux wood columns, or contemporary solid colors for modern aesthetics. Curved wall applications including radiused reception desks, curved corridor walls, and cylindrical display structures benefit from the material's conformability. The installation process involves applying adhesive to the substrate, then rolling the flexible laminate onto the surface while smoothing out air bubbles. Seams are typically placed at the least visible location on columns. The material's flexibility allows it to conform to columns ranging from small decorative pillars to large structural columns. Particularly valuable in hotel lobbies, shopping mall common areas, and corporate office buildings where column aesthetics are important design elements.

Furniture Manufacturing and Edge Banding

Heavy Use

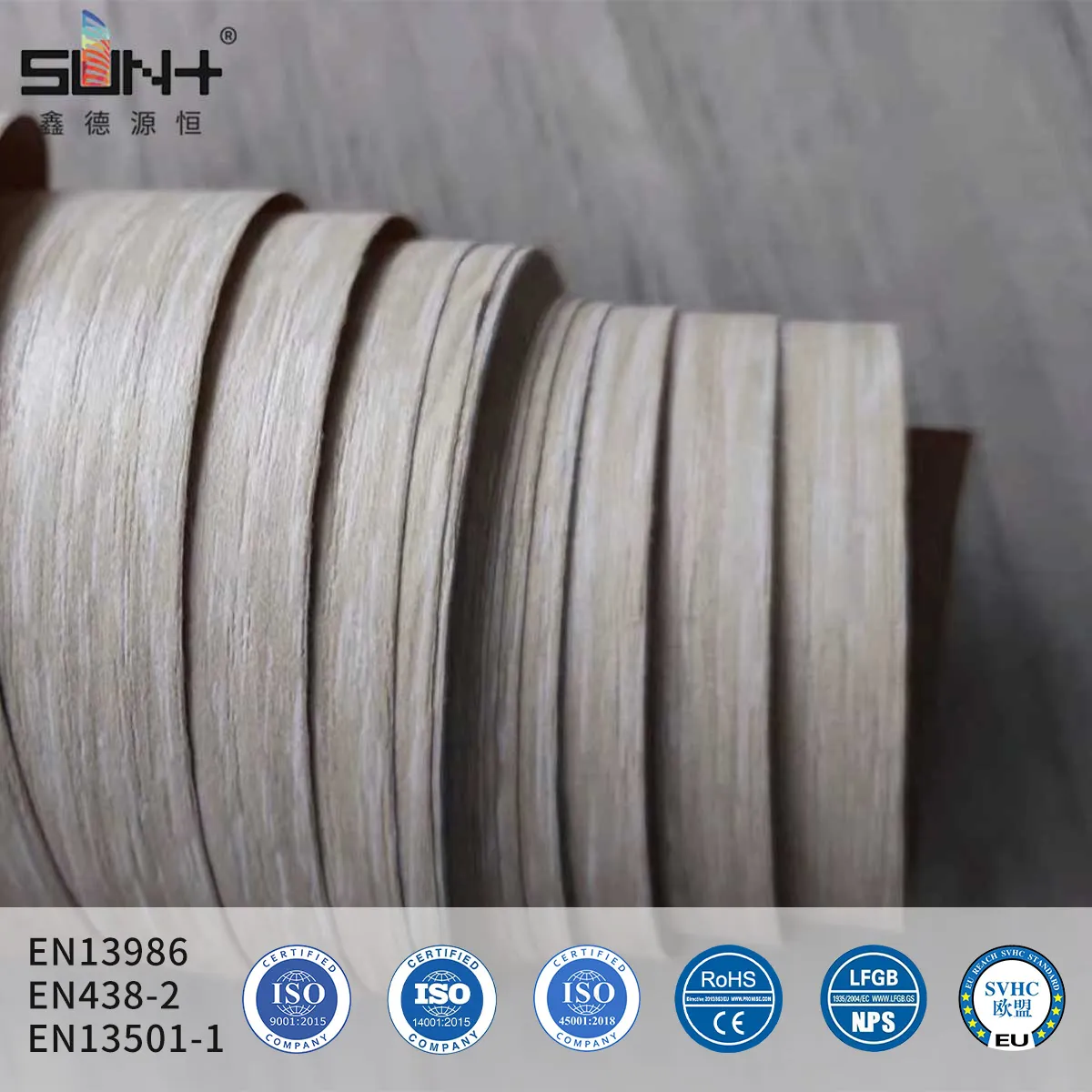

Extensively used in furniture manufacturing for edge banding applications where the flexible material wraps around furniture edges, drawer fronts, and panel perimeters. The continuous roll format is ideal for high-volume furniture production where edge banding is applied using automated edge banding machines. The material feeds continuously through the machine, is cut to length, and heat-bonded to furniture edges in a single operation. Thicker furniture panels (18-25mm) benefit from flexible laminate edge banding that creates seamless transitions from panel face to edge. Kitchen cabinet manufacturers use flexible roll laminate for door and drawer front edge banding, ensuring color and pattern continuity between face and edge. Office furniture factories apply flexible laminate to desk edges, conference table edges, and panel edges. The material's flexibility allows it to conform to slightly radiused edges and profiled edges. Available in colors and patterns matching standard HPL face sheets, enabling coordinated furniture designs. The thin profile (0.4-0.7mm) creates minimal edge buildup, maintaining clean furniture lines. Furniture manufacturers appreciate the material's cost-effectiveness compared to solid edge banding and the efficiency of roll-fed application processes.

Retail Display Fixtures and Curved Showcases

Medium Use

Enables retail fixture manufacturers to create curved display cases, cylindrical product pedestals, and organic-shaped fixtures that attract customer attention. Curved glass display cases benefit from flexible laminate base cladding that follows the case's curved footprint. Cylindrical product display towers can be seamlessly wrapped with wood grain or branded graphics. Retail environments increasingly feature curved design elements that create visual flow and guide customer circulation—flexible roll laminate makes these designs practical to execute. Cosmetics retailers use curved display fixtures wrapped in sophisticated finishes. Electronics stores create curved demonstration tables and display walls. Fashion retailers specify organic-shaped fixtures that break away from traditional rectangular display systems. The material's ability to conform to compound curves (surfaces curving in multiple directions) enables truly sculptural retail fixtures. Installation is faster than segmented rigid laminate panels, reducing fixture fabrication time and cost. The seamless appearance creates premium fixture aesthetics that enhance merchandise presentation.

Door Manufacturing and Surface Wrapping

Heavy Use

Used by door manufacturers for wrapping door skins, particularly for interior doors with profiled surfaces, panel details, and decorative elements. The flexible material conforms to door panel recesses and raised details that rigid laminates cannot follow. Molded door skins with simulated wood grain patterns use flexible roll laminate to create realistic door appearances. The continuous roll format enables wrapping entire door faces without seams. Commercial door manufacturers use flexible laminate for high-traffic interior doors in hotels, hospitals, schools, and office buildings. The material provides durable, easy-to-clean door surfaces that resist scuffs and stains better than paint or wood veneer. Residential door manufacturers offer flexible laminate as an upgrade option for homeowners seeking low-maintenance, durable interior doors. The material can wrap around door edges, creating color continuity from face to edge. Fire-rated door cores can be clad with flexible laminate meeting appropriate fire safety standards. The material's resistance to moisture makes it suitable for bathroom and kitchen doors where humidity exposure occurs.
