Chemical Resistant Compact Board
Excellent chemical resistance, antibacterial, ideal for laboratories and healthcare facilities
Quick Specifications
Product Overview
Chemical Resistant Compact Board (理化板) is a high-performance decorative panel manufactured through high-pressure lamination technology. Multiple layers of kraft paper impregnated with phenolic resin are compressed under heat (150°C) and pressure (1430 PSI/100 kg/cm²) to create a dense, homogeneous core. The surface features a specialized chemical-resistant overlay that provides exceptional resistance to acids (pH 1-3), bases (pH 11-14), and organic solvents. This advanced manufacturing process results in a non-porous, self-supporting panel with superior mechanical strength and chemical durability. Ideal for laboratory countertops, hospital furniture, pharmaceutical facilities, and industrial workstations where chemical exposure is frequent. The product meets international standards including EN 438, NFPA 286, and GB/T 7911-2013.
Technical Specifications
Physical Properties
| Thickness Range | 2mm - 25mm |

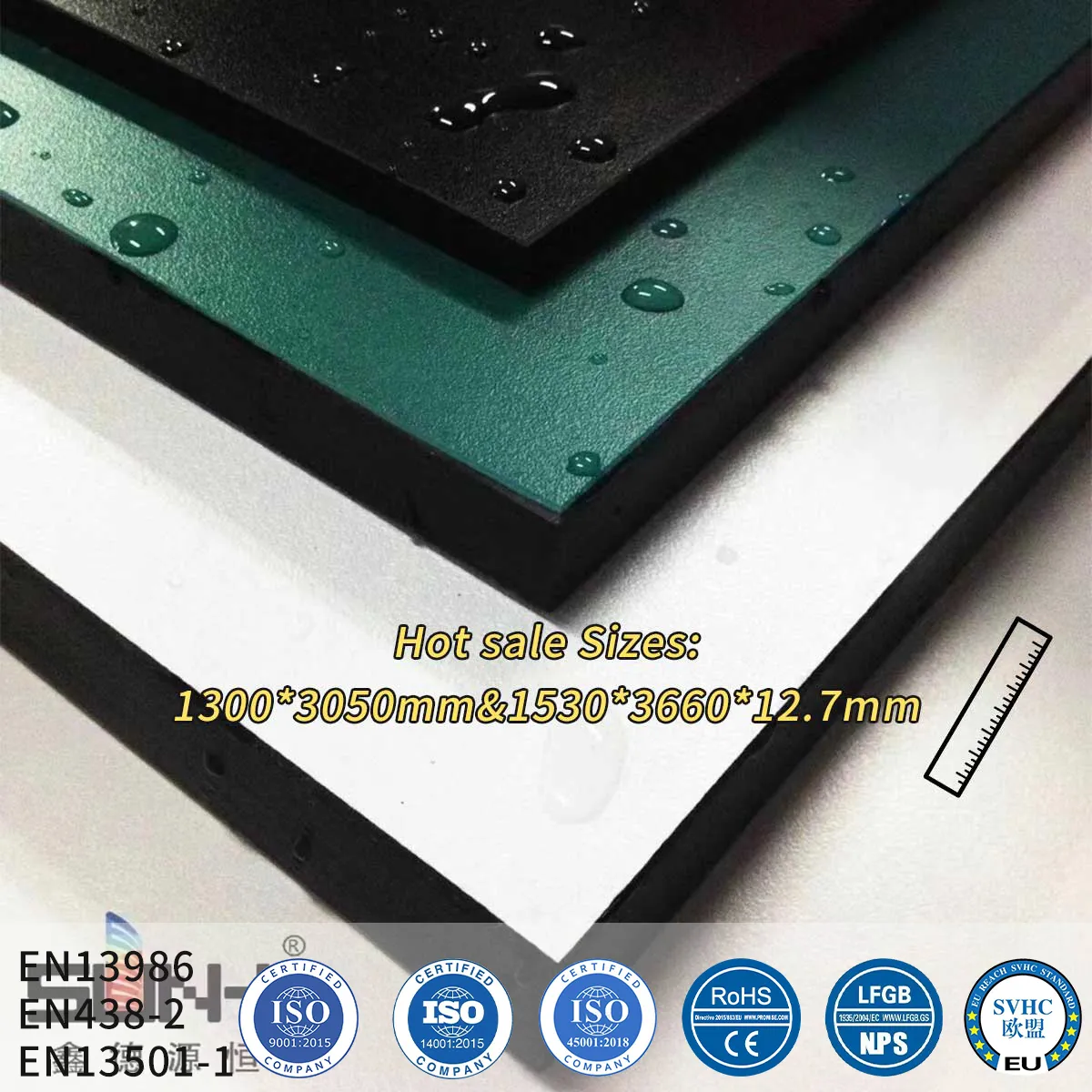

| Standard Sizes | 1220×2440mm, 1300×3050mm, 1530×3660mm |
| Density | ≥1.35 g/cm³ |
| Water Absorption | <0.1% (24h immersion) |
| Flexural Strength | ≥90 MPa |
| Impact Resistance | ≥20 kJ/m² (Charpy notched) |
| Surface Hardness | ≥6H (pencil hardness) |
Chemical Resistance
| Sulfuric Acid (98%) | Excellent - No visible change |
| Hydrochloric Acid (37%) | Excellent - No visible change |
| Nitric Acid (65%) | Good - Slight discoloration |
| Sodium Hydroxide (40%) | Excellent - No visible change |
| Acetone | Good - Slight surface softening |
| Ethanol | Excellent - No visible change |
| Hydrogen Peroxide (30%) | Excellent - No visible change |
Thermal & Fire Properties
| Fire Classification | Class B (GB 8624-2012) |
| Flame Spread Index | ≤25 (ASTM E84) |
| Smoke Density Rating | ≤450 (ASTM E84) |
| Heat Resistance | Up to 180°C (short-term exposure) |
| Thermal Expansion | 2.5×10⁻⁵ /°C |
Standards & Certifications
| SEFA 3 Laboratory Furniture | ✓ Compliant |
| EN 438 HPL Standard | ✓ Certified |
| ISO 9001 Quality | ✓ Certified |
| GREENGUARD Indoor Air | ✓ Certified |
| NFPA 286 Fire Test | ✓ Passed |
Key Benefits
Chemical Resistant
Withstands acids (pH 1-3), bases (pH 11-14), and organic solvents
Antibacterial Surface
99.9% bacteria reduction, inhibits microbial growth
Waterproof Core
Zero water absorption, complete moisture resistance
Fire Safety
Class B fireproof rating, low smoke emission
Easy Maintenance
Non-porous surface, simple cleaning with standard agents
Impact Resistant
High-density core withstands heavy laboratory equipment
Stain Proof
Resists permanent staining from chemicals and dyes
Long Lifespan
20+ years service life in demanding environments
Applications

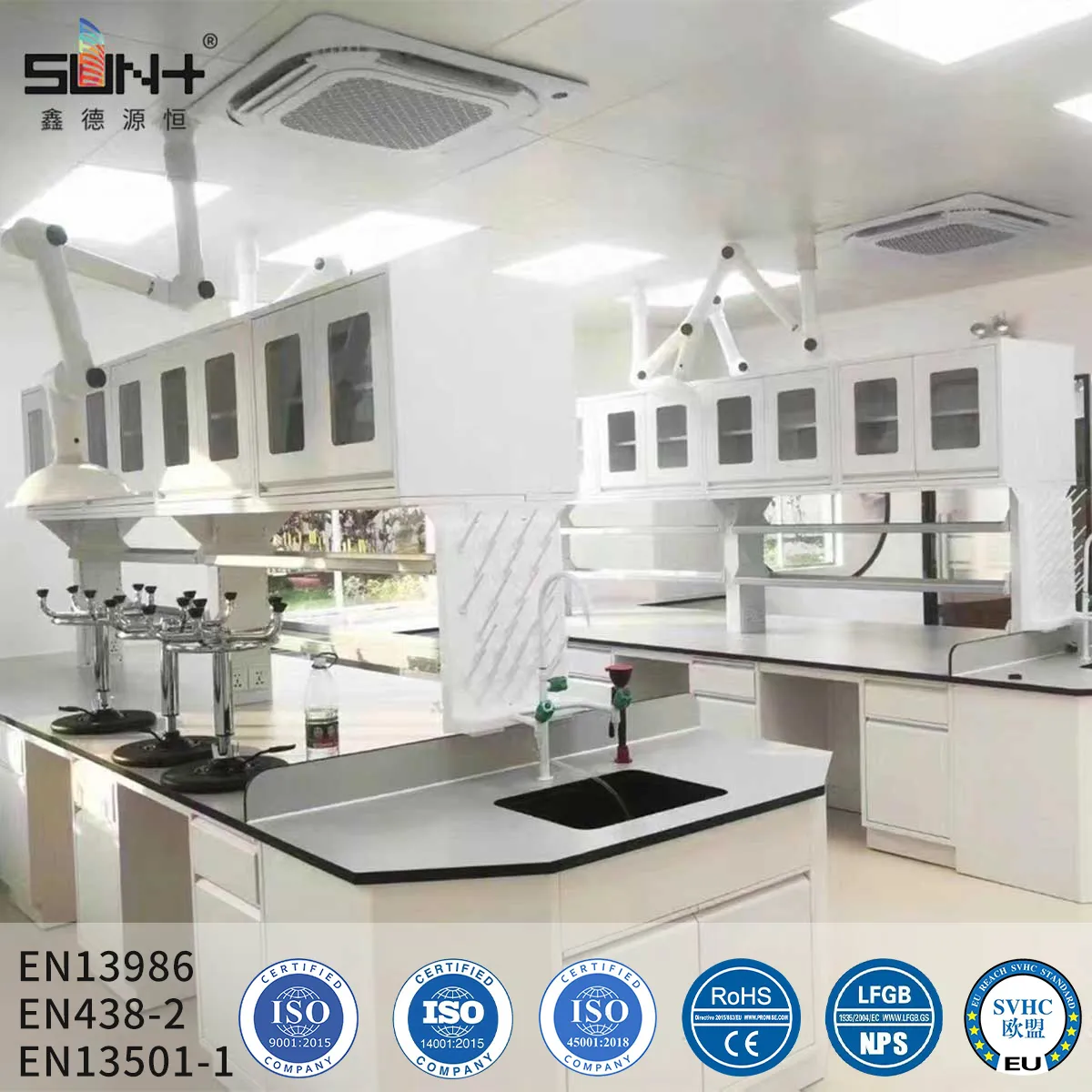

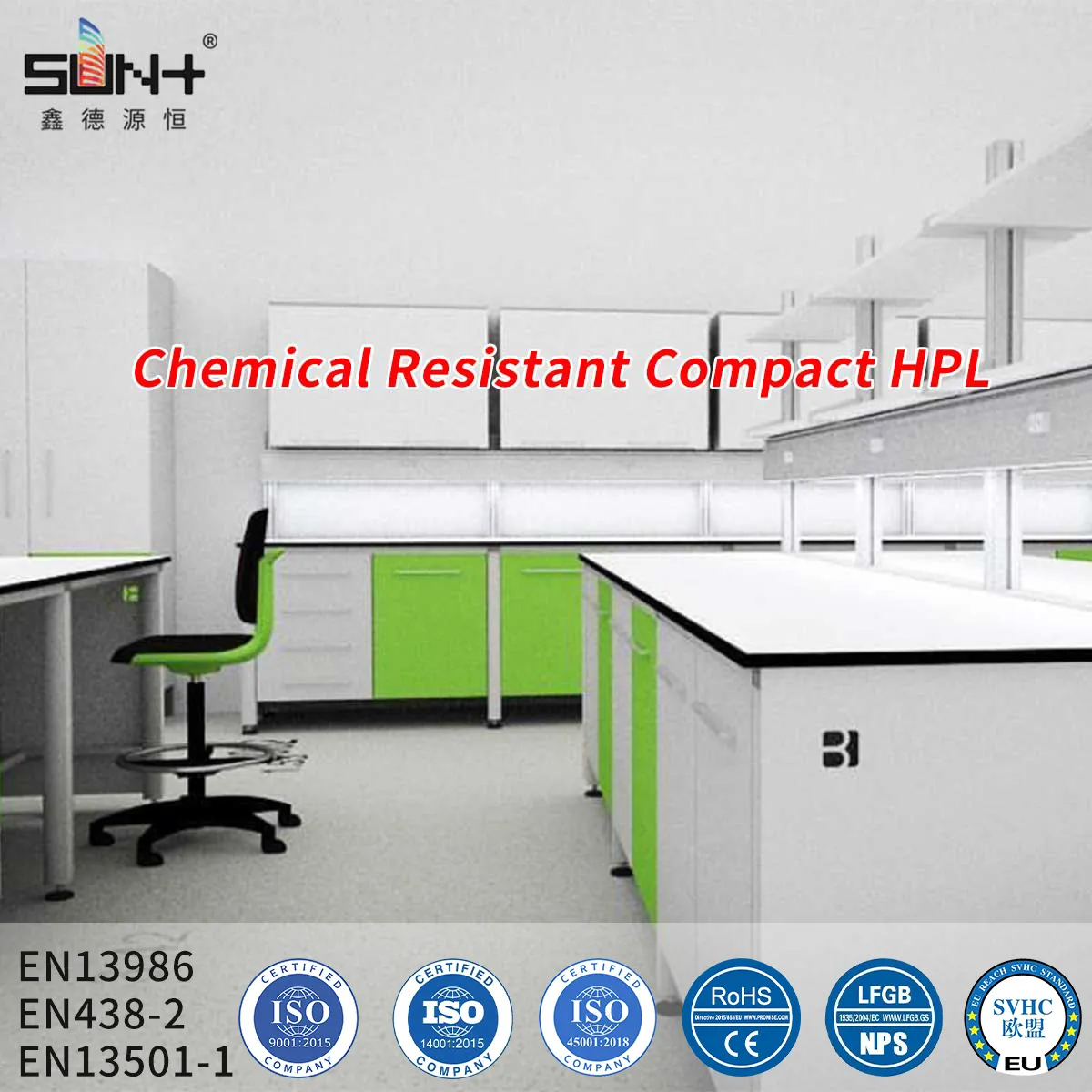

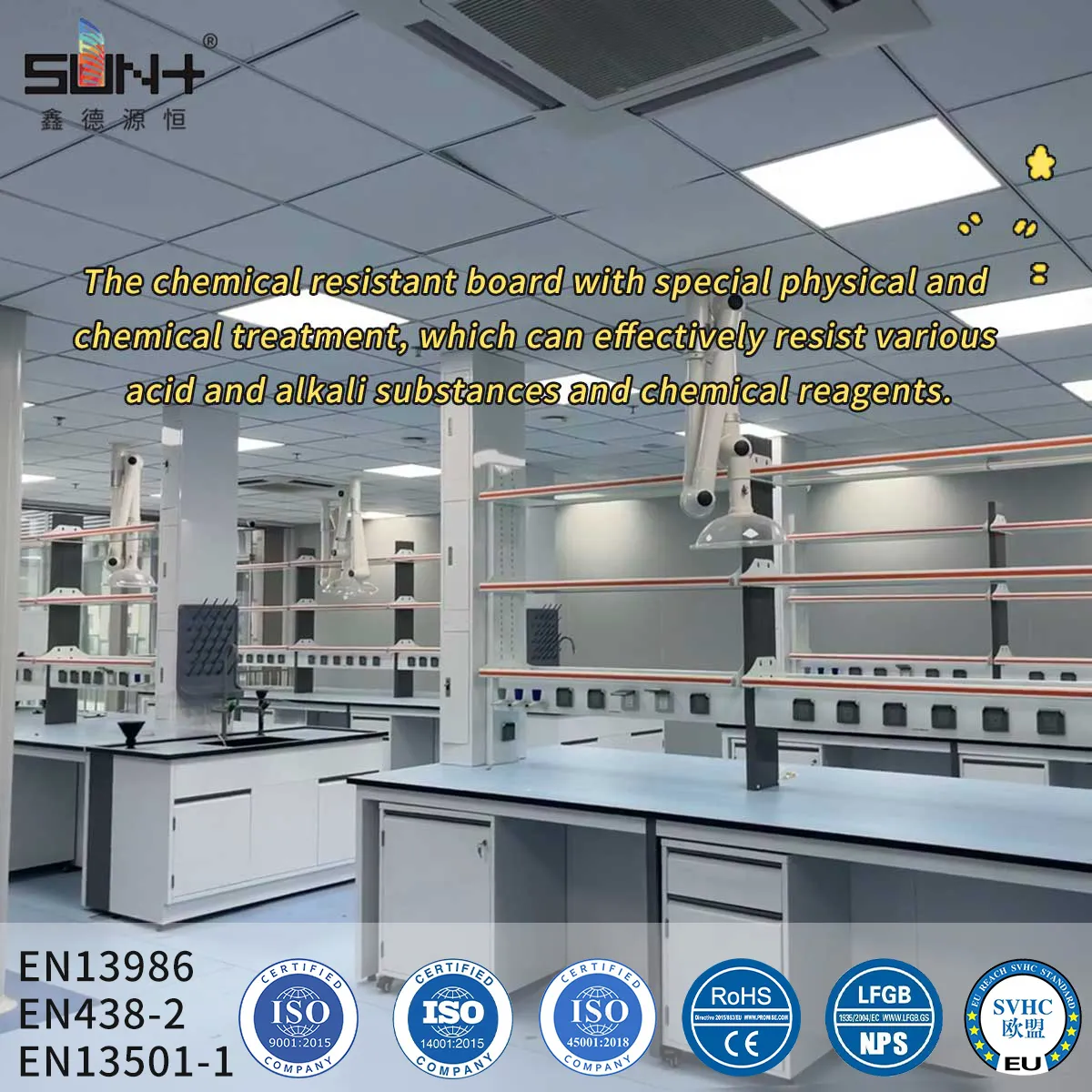

Laboratory Countertops & Workbenches
Heavy UseExtensively used in chemistry, biology, and physics laboratories for work surfaces exposed to acids, bases, and organic solvents. The non-porous surface prevents chemical penetration and bacterial growth. Typical installations include university research labs, quality control facilities, and industrial R&D centers. Withstands daily exposure to concentrated chemicals while maintaining structural integrity and appearance.
Healthcare & Hospital Furniture
Heavy UseIdeal for hospital laboratory counters, nurse stations, pharmacy workstations, and medical equipment surfaces. The antibacterial properties (99.9% bacteria reduction) and easy-to-clean surface meet strict healthcare hygiene standards. Resistant to common disinfectants including bleach, alcohol, and quaternary ammonium compounds. Complies with healthcare facility requirements for infection control.
Pharmaceutical & Biotech Manufacturing
Heavy UsePerfect for clean room environments, quality control labs, and pharmaceutical production areas. Meets GMP (Good Manufacturing Practice) requirements with zero VOC emissions and non-particle-shedding surface. Resistant to pharmaceutical cleaning agents and sterilization procedures. Used in tablet compression areas, sterile filling rooms, and analytical laboratories.

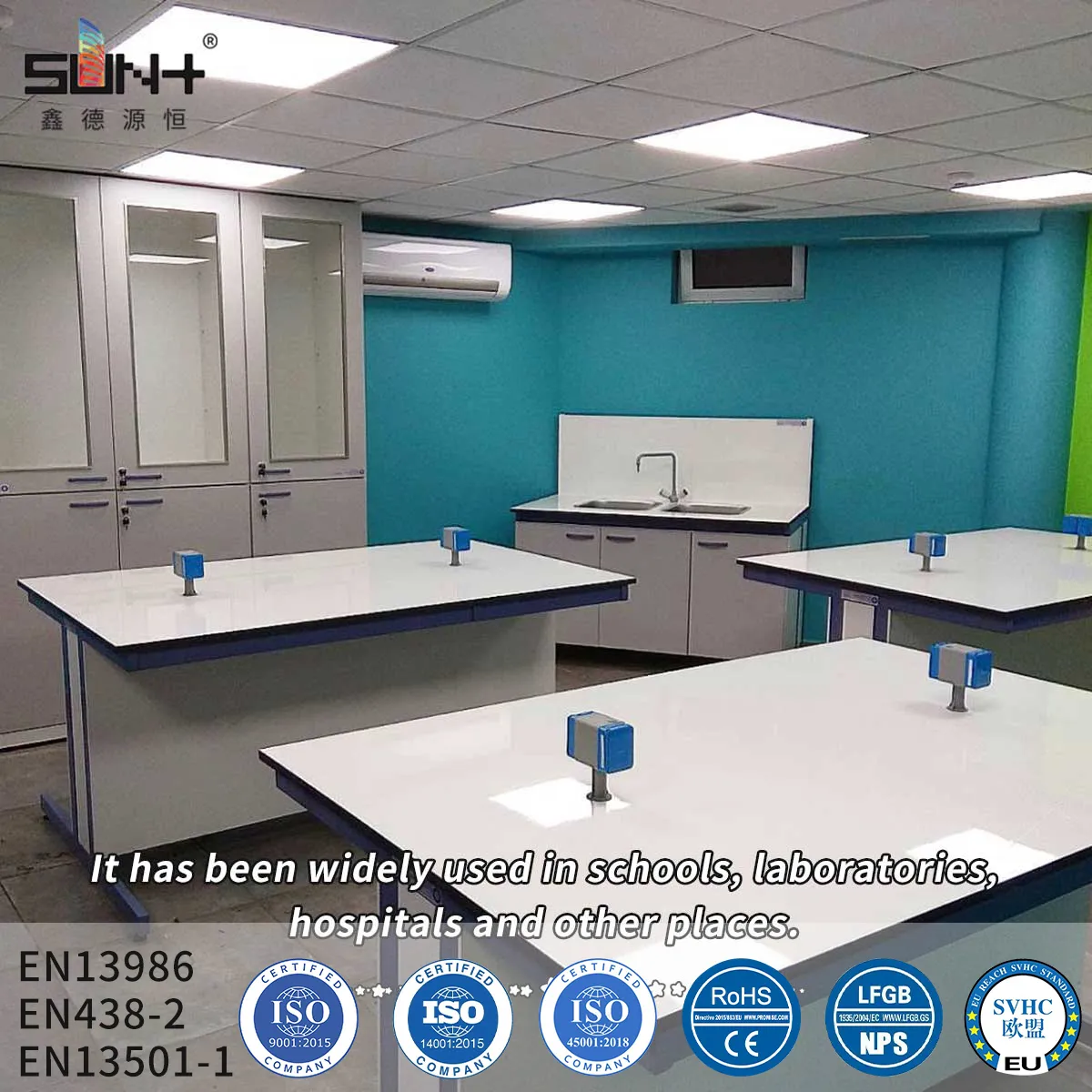

Educational & Research Institutions
Medium to Heavy UseWidely adopted in university chemistry labs, vocational training centers, and research institutes. Durable enough to withstand student use while providing professional-grade chemical resistance. Cost-effective solution for educational facilities requiring long-term performance (20+ years lifespan). Easy maintenance reduces facility management costs.
Industrial Quality Control Labs
Heavy UseEssential for QC laboratories in manufacturing plants, food processing facilities, and environmental testing centers. Resists industrial chemicals, oils, and cleaning agents. Suitable for sample preparation areas, testing benches, and instrument tables. Maintains dimensional stability under varying temperature and humidity conditions.
